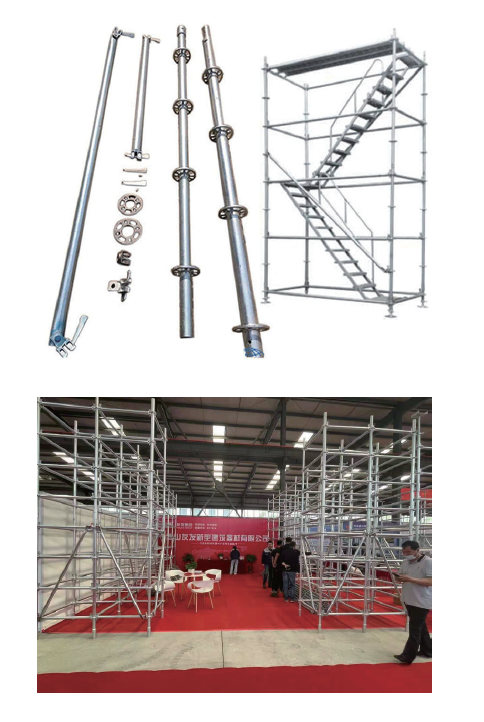

RINGLOCK SCAFFOLDING SYSTEM

Advantages:

• Safety: Ringlock standards are assembled with ledgers and diagonal braces using secure fixed wedge connections. It enhances the safety and stability of the system.

• Economic: Easily assembled system scaffold saves time and labor costs.

• Application: Ringlock scaffolding is widely used in many construction projects, such as Civil & Building, interior decoration, stage erection, bridge construction, etc.

Two Normal Types:

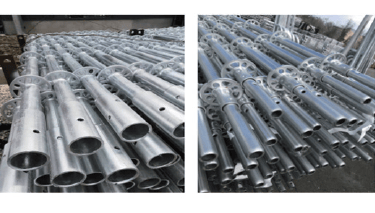

60 System Standard :

• Material: Steel

• Surface Treatment: Hot-dip galvanized

• Dimensions: Φ60×3.25mm

• Effective Length: 500 / 1000 / 1500 / 2000 / 2500 / 3000 mm

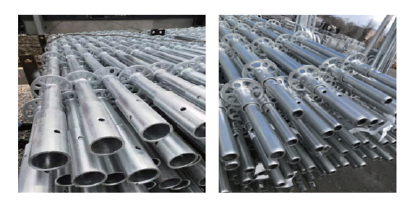

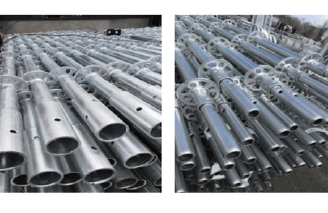

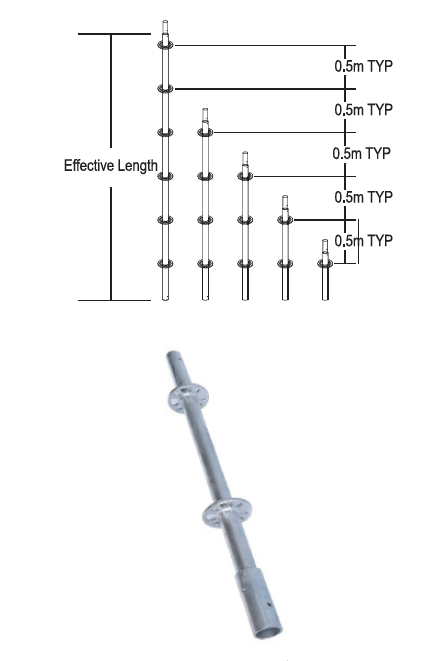

Ringlock Standard / Vertical with Spigot

• Material: Q355 Steel

• Surface Treatment: Hot-dip galvanized

• Dimensions: Φ48.3×3.25mm

Length         Theoretical Weight

0.5 m / 1'7"        3.2 kg / 7.04 lbs
1.0 m / 3'3"        5.5 kg / 12.1 lbs
1.5 m / 4'11"      7.8 kg / 17.16 lbs
2.0 m / 6'6"       10.1 kg / 22.2 lbs
2.5 m / 8'2"       12.4 kg / 27.28 lbs
3.0 m / 9'9"       14.6 kg / 32.1 lbs

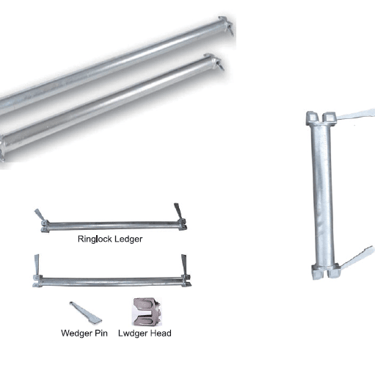

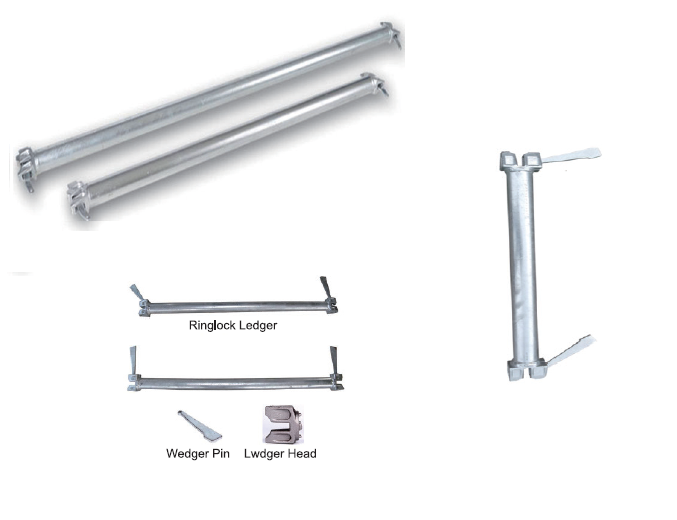

Ringlock Ledger / Horizontal

Material: Steel
Surface Treatment: Hot dipped galvanized
Dimensions: Φ48.3×3.2/3.25/2.75/2.5 mm or customized by customer

Popular Sizes for South East Asia and Africa Market

Length

0.6 m / 1'11"

0.9 m / 2'11"

1.2 m / 3'11"

1.5 m / 4'11"

1.8 m / 5'11"

2.1 m / 6'6"

2.4 m / 7'10"

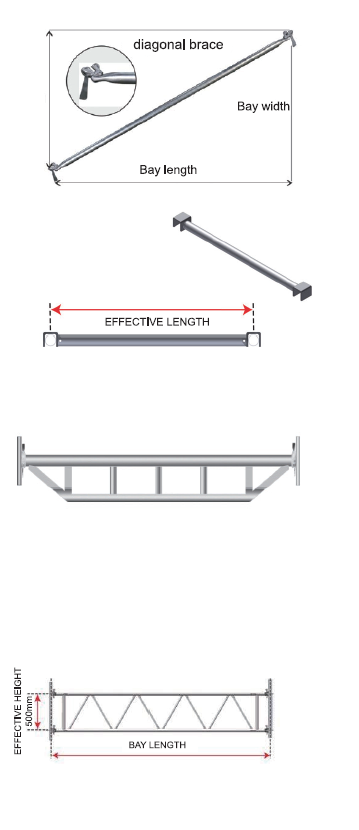

Ringlock Diagonal Brace / Bay Braces

Material: Steel
Surface Treatment: Hot dipped galvanized
Dimensions: Φ48.3×2.75 mm or customized by customer

Bay Length Bay Width Theoretical WT

0.6 m 1.50 m 3.92 kg

0.9 m 1.50 m 4.1 kg

1.2 m 1.50 m 4.4 kg

1.5 m 1.50 m 6.63 kg

0.65 m / 2'2" 2.07 m 7.35 kg / 16.20 lbs

0.88 m / 2'10" 2.15 m 7.99 kg / 17.58 lbs

1.15 m / 3'10" 2.26 m 8.53 kg / 18.79 lbs

1.57 m / 8'2" 2.18 m 9.25 kg / 20.35 lbs

Double / Truss / Bridge / Reinforce Ledger

Material: Steel
Surface Treatment: Hot dipped galvanized
Dimensions: Φ48.3×2.75 mm or customized by customer

Length Weight

1.57 m / 5'2" 10.1 kg / 22.26 lbs

2.13 m / 7' 16.1 kg / 35.43 lbs

2.13 m / 10' 24 kg / 52.79 lbs

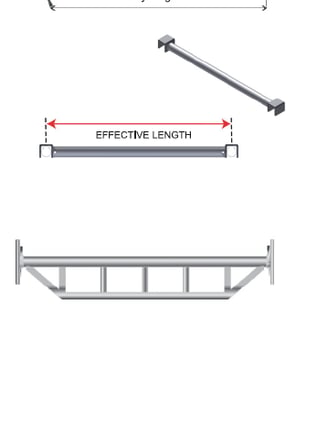

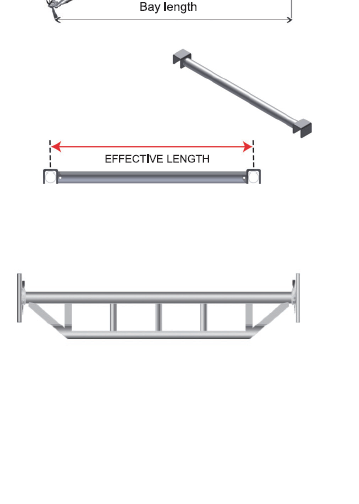

Intermediate Transom

Surface Treatment: Hot dip galvanized
Dimensions: 48.3×3 mm

Length Weight

1.15 m / 3'10" 5.36 kg / 11.78 lbs

2.13 m / 7' 8.91 kg / 19.6 lbs

3.05 m / 10' 12.2 kg / 26.85 lbs

Trussed Beam / Lattice Girder

Material: Steel
Surface Treatment: Hot dip galvanized
Dimensions: 48.3×3 mm

Length Weight

5.17 m / 17'7 0.47 kg / 115.03 lbs

6.14 m / 20'2" 82.63 kg / 181.79 lbs

7.71 m / 25'3" 103.76 kg / 228.26 lbs
