CUPLOCK SCAFFOLDING SYSTEM

cuplock scaffold is the unique circular cup-node point that allows up to 4 horizontally connected scaffolds in a single installation – possibly making it the fastest and safest system available.

The wide range of cuplock scaffolding components allows it to be used with conventional scaffolding panels or beams. It can be used to construct a wide variety of access and support structures, including stair towers, circular scaffolding, loading towers, and mobile towers.

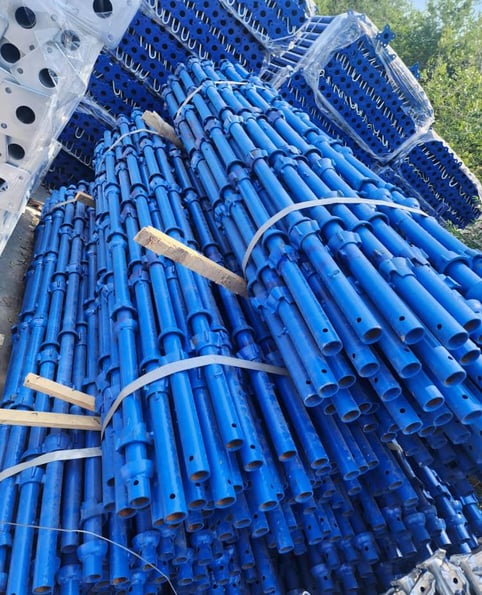

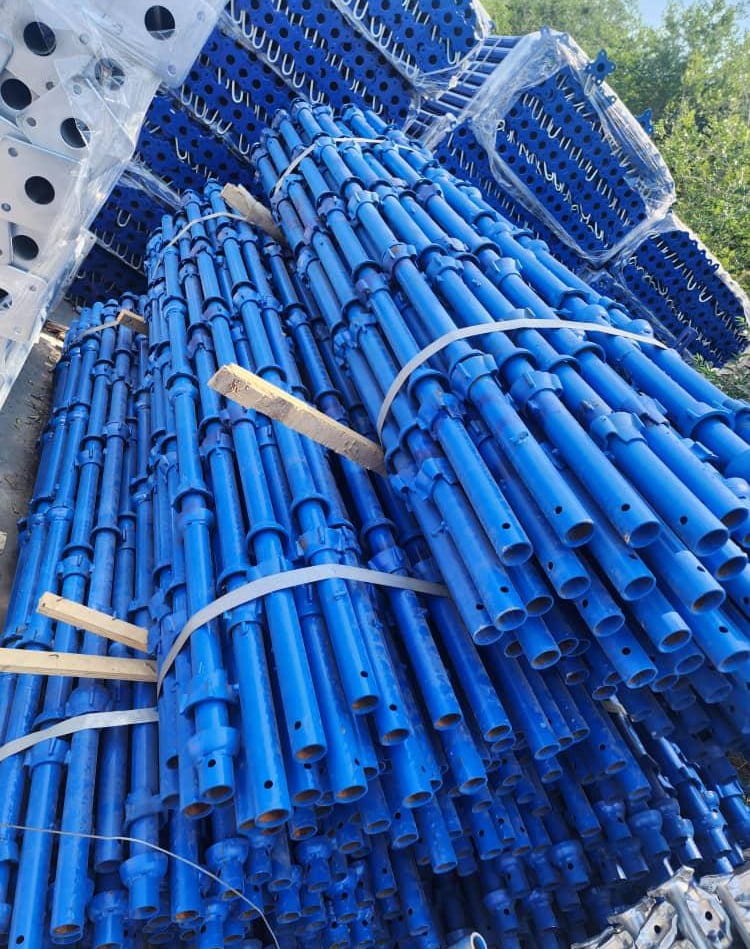

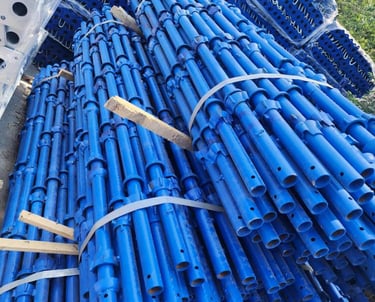

Cuplock Standard / Vertical

Material: Steel

Spec: 48.3×3.2 mm

Length Weight

3 m / 9'10" 17.5 kg / 38.25 lbs

2.5 m / 8'2" 14.57 kg / 32.12 lbs

2 m / 6'2" 11.82 kg / 26.07 lbs

1.5 m / 4' 11"9.05 kg / 19.95 lbs

1 m / 3'3" 6.3 kg / 13.91 lbs

0.5 m / 1'8" 3.5 kg / 7.77 lbs

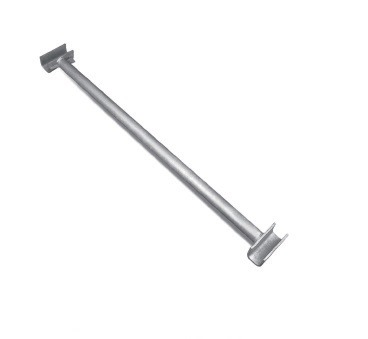

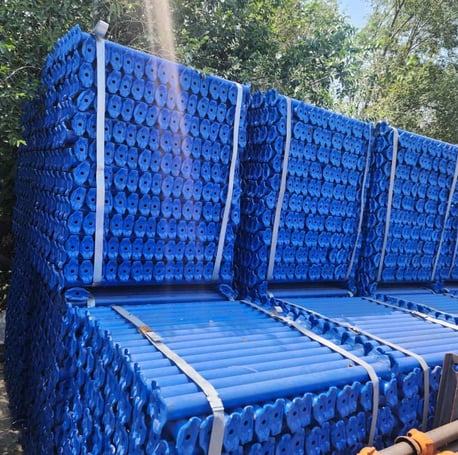

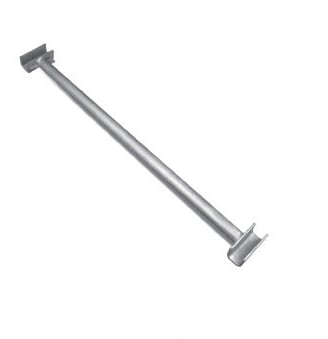

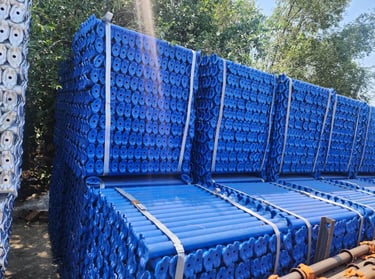

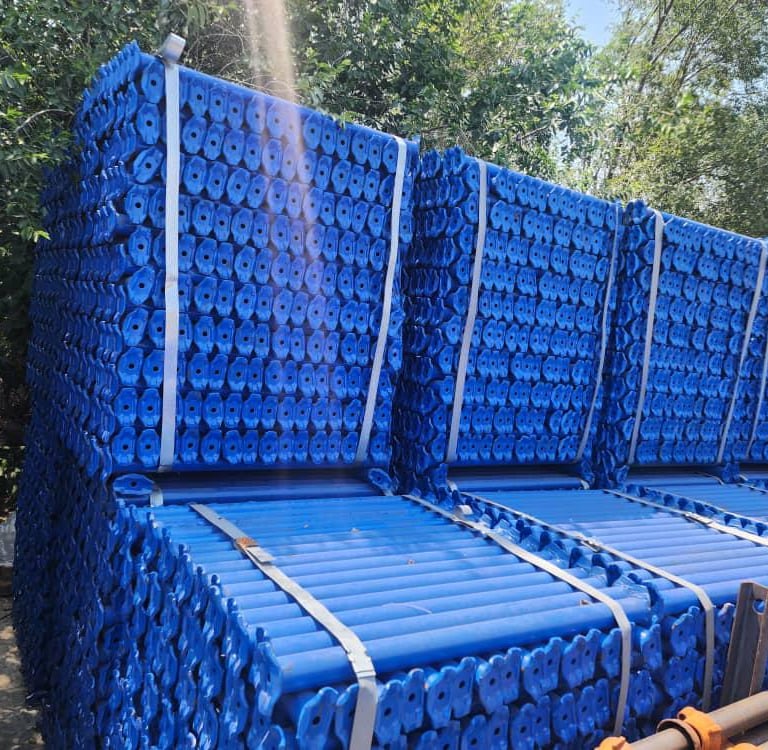

Cuplock Ledger / Horizontal

Material: Steel

Spec: 48.3×3.2 mm

Length Weight

2.5 m / 8'2" 9.35 kg / 20.61 lbs

1.8 m / 6' 6.85 kg / 15.1 lbs

1.5 m / 4'11" 5.75 kg / 9.46 lbs

1.2 m / 4' 4.29 kg / 13.91 lbs

0.9 m / 3' 3.55 kg / 7.83 lbs

0.6 m / 2' 2.47 kg / 5.45 lbs

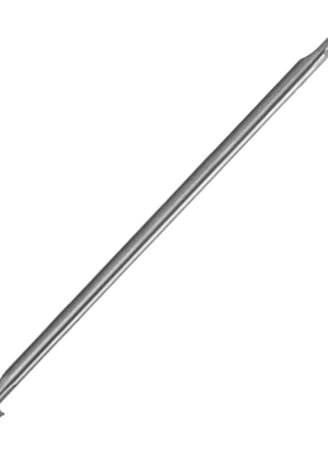

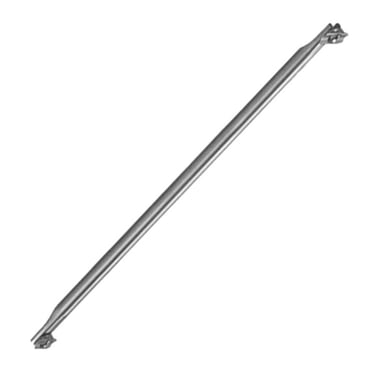

Cuplock Diagonal Brace

Material: Steel

Spec: 48.3×3.2 mm

Dimensions Weight

1.5*1.8 m 8.25 kg / 18.19 lbs

1.5*2.5 m 9.99 kg / 22.02 lbs

2*1.8 m 9.31 kg / 20.52 lbs

2*2.5 m 10.86 kg / 23.94 lbs

Cuplock Intermediate Transom

Material: Steel

Spec: 48.3×3.2 mm

Length Weight

2.5 m / 8'2" 11.82 kg / 26.07 lbs

1.8 m / 6' 8.29 kg / 18.28 lbs

1.3 m / 4'3" 6.48 kg / 14.29 lbs

1.2 m / 4' 5.98 kg / 13.18 lbs

0.795 m / 2'7" 4.67 kg / 10.3 lbs

0.565 m / 1'10" 3.83 kg / 8.44 lbs
