Scaffolding Jack Base & U Head Jack

Material: Steel
Standards: EN74-1, AS/NZS1576.2:2009
Surface Finish: Electro-galvanized, Hot Dipped Galvanized

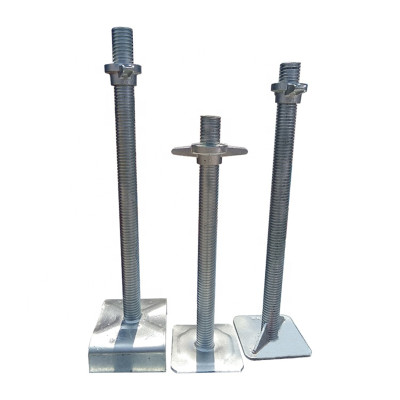

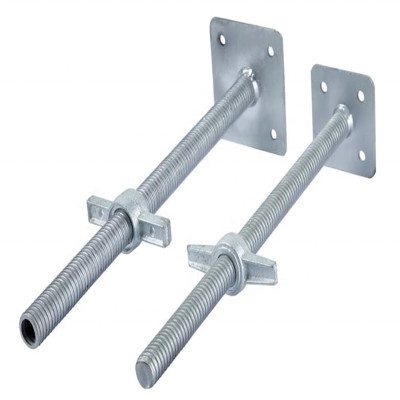

Jack Base Options

Type Specification Base Plate Size

Solid 30×400 mm 120×120×4 mm

Solid 30×600 mm 120×120×4 mm

Solid 32×400 mm 120×120×4 mm

Solid 32×600 mm 120×120×4 mm

Solid 34×400 mm 120×120×4 mm

Solid 34×600 mm 150×150×5 mm

Hollow 38×4×600mm 150×150×5 mm

Hollow 38×4×660 mm 150×150×5 mm

Hollow 38×4×760 mm 150×150×5 mm

Hollow 48×4×600 mm 150×150×5 mm

Hollow 48×4×900 mm 150×150×5 mm

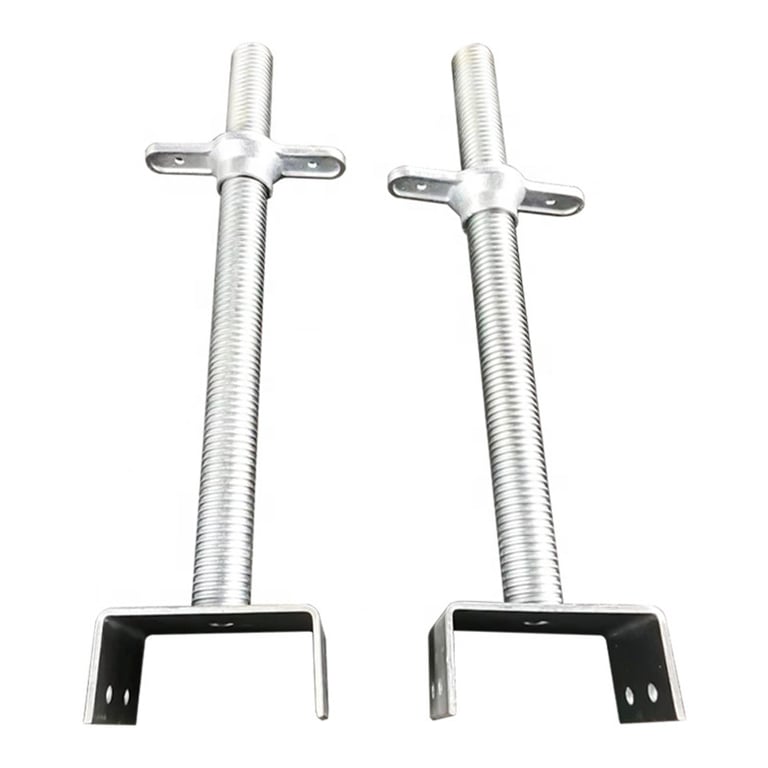

U Head Jack Options

Type Specification U Base Plate Size

Solid 30×400 mm 150×150×50×4 mm

Solid 30×600 mm 150×120×50×4 mm

Solid 32×400 mm 120×120×50×4 mm

Solid 32×600 mm 150×120×50×4 mm

Solid 34×400 mm 120×120×50×4 mm

Solid 34×600 mm 150×120×50×4 mm

Hollow 38×4×600 mm 150×150×50×5 mm

Hollow 38×4×660 mm 180×150×80×6 mm

Hollow 38×4×760 mm 165×150×50×5 mm

Hollow 48×4×600 mm 150×150×50×8 mm

Hollow 48×4×900 mm 200×200×50×8 mm

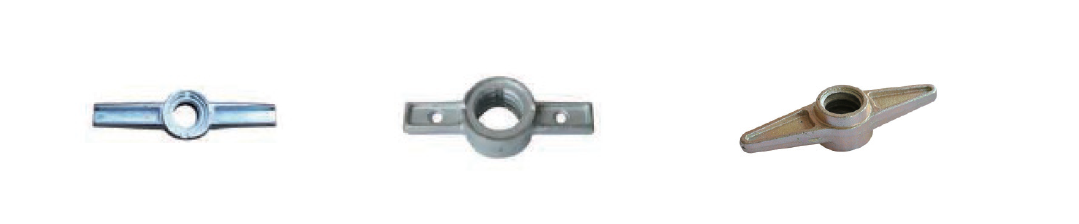

Jack Nut

• Available as casted or forged

• Finish: Original, Electro Galvanized, Hot Dipped Galvanized (HDG)

• Compatible diameters: 30 mm, 32 mm, 34 mm, 38 mm, 48 mm
