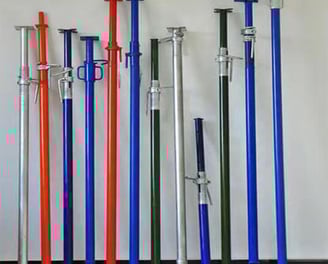

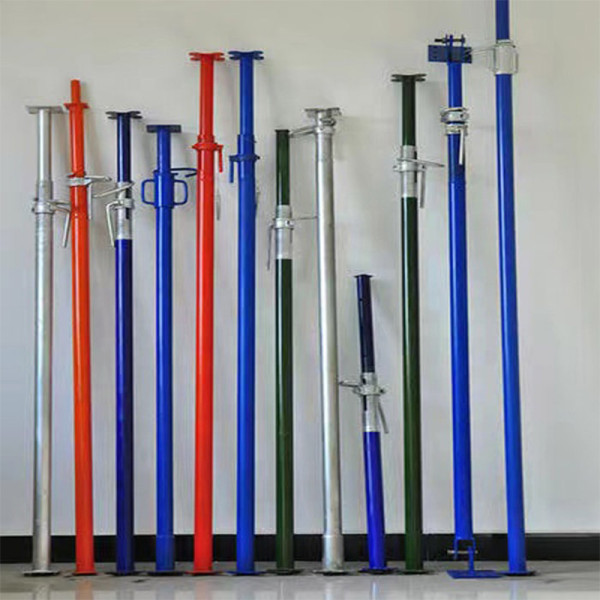

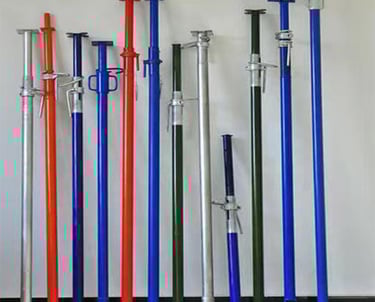

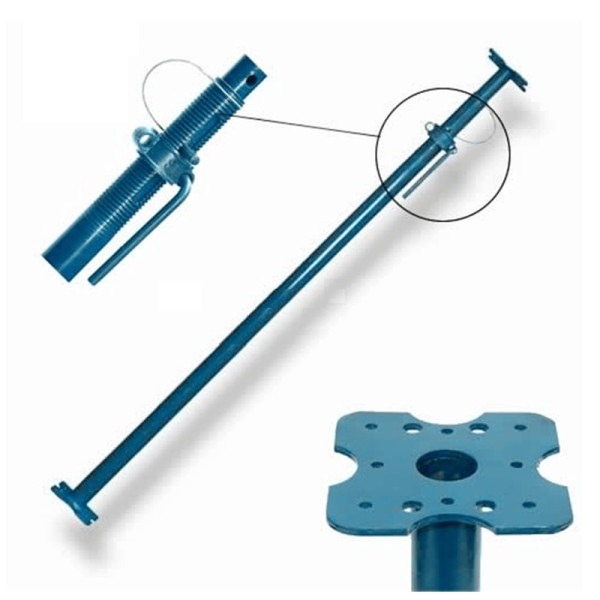

Construction Painted and Galvanized Shoring Scaffolding Props Jack

Categories :: Steel Prop

Manufacturer :: Model scaffolding steel props

Type :: Adjustable Shoring Steel Props

Application :: Mall, Sports Venues, Leisure Facilities, Warehouse

Material :: Steel

Advantage :: Stable, Easy Assemble

Surface treatment :: Galvanized Zinc or Color Painted

Color :: Silver, Blue, Red, Orange and so on

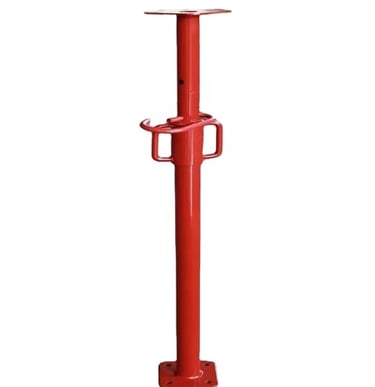

Light Duty Prop Jack

( Wall Thickness 1.4 - 2.5 mm )

Height Inner Tube Outer Tube

Min 0.8m - Max 1.4m 40mm 48mm

Min 1.6m - Max 3m 40mm 48mm

Min 1.8m - Max 3.2m 40mm 48mm

Min 2m - Max 3.6m 40mm 48mm

Min 2.2m - Max 4m 40mm 48mm

Light Duty Prop Jack

( Wall Thickness 1.4 - 2.75 mm )

Height Inner Tube Outer Tube

Min 1.6m - Max 3m 48mm 56mm

Min 1.8m - Max 3.2m 48mm 56mm

Min 2m - Max 3.6m 48mm 56mm

Min 2.2m - Max 4m 48mm 56mm

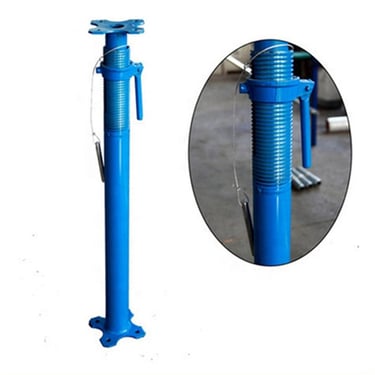

Heavy Duty Prop Jack

( Wall Thickness 1.4 - 4 mm )

Height Inner Tube Outer Tube

Min 1.7m - Max 3m 48mm 60mm

Min 1.8m - Max 3.2m 48mm 60mm

Min 2m - Max 3.6m 48mm 60mm

Min 2.2m - Max 4m 48mm 60mm

Min 3m - Max 5m 48mm 60mm
